Casting class: my giant heart shaped ring

I love it! I had been searching for a ring just like this on Etsy but to no avail…so I made it myself!

Ta-da! My lovely new heart ring.

Ta-da! My lovely new heart ring.

This was my final project for the jewelry casting class I’ve been taking at Jewel Envy here in Toronto. I posted previously about carving the wax model and the casting process. Here’s what happened in the last two classes.

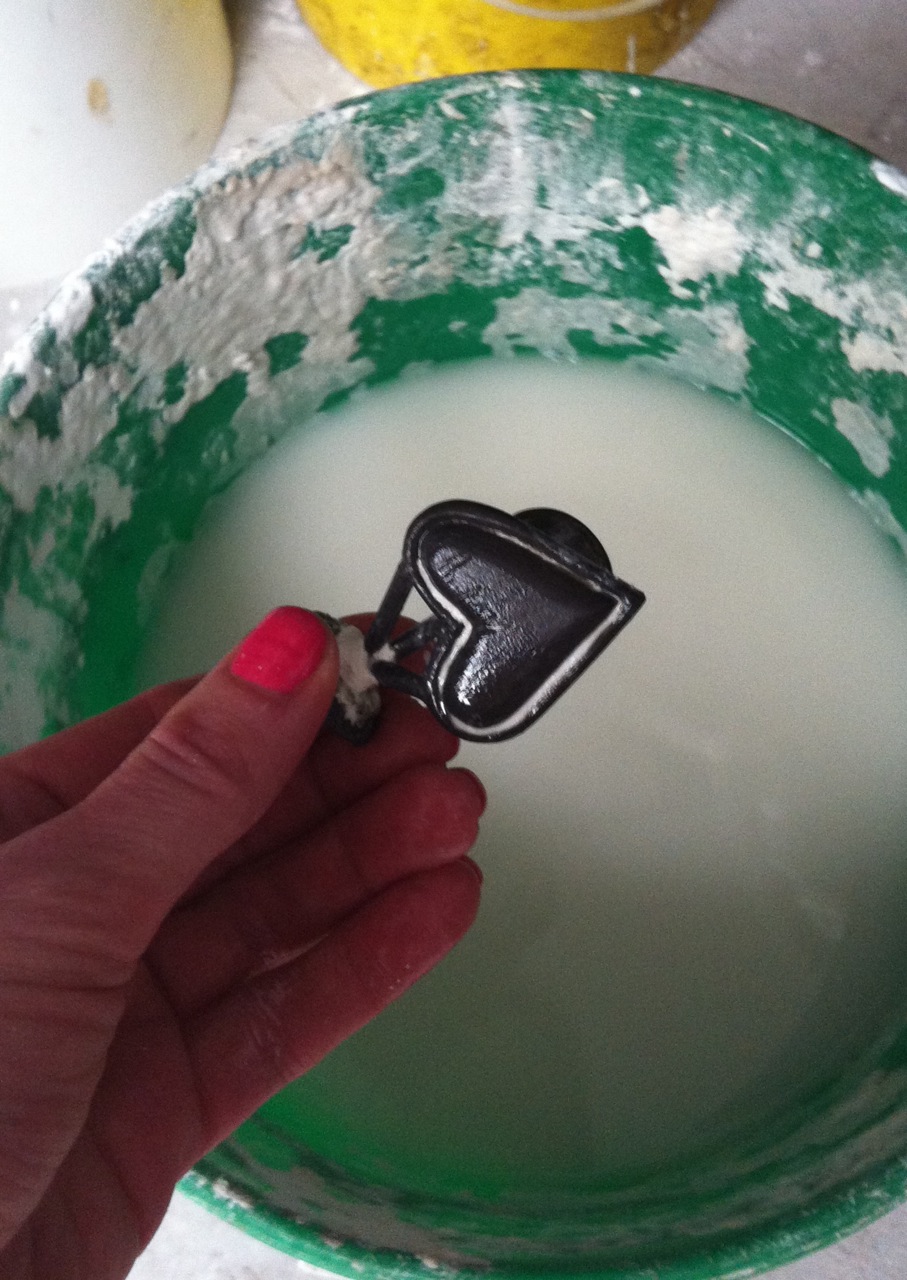

Below are the ring pieces after dissolving the plaster mold in water. It’s nerve-wracking fishing the casting out of the murky water because you are just praying that the casting process worked ok, otherwise it would be back to square one and hours of carving another wax model. You can see that both the ring band and the heart piece were done in the same mold. They’re attached by “sprues”, which are tubes that allow the molten silver to flow into the mold.

The ring pieces right after casting.

The ring pieces right after casting.

Both the ring band and the heart were cast in the same mould

Both the ring band and the heart were cast in the same mold.

Next, the casting gets tossed into warm “pickle” (an acidic bath) to clean it off, and then I sawed off the sprues:

heartring12

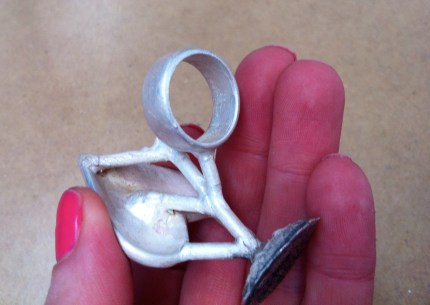

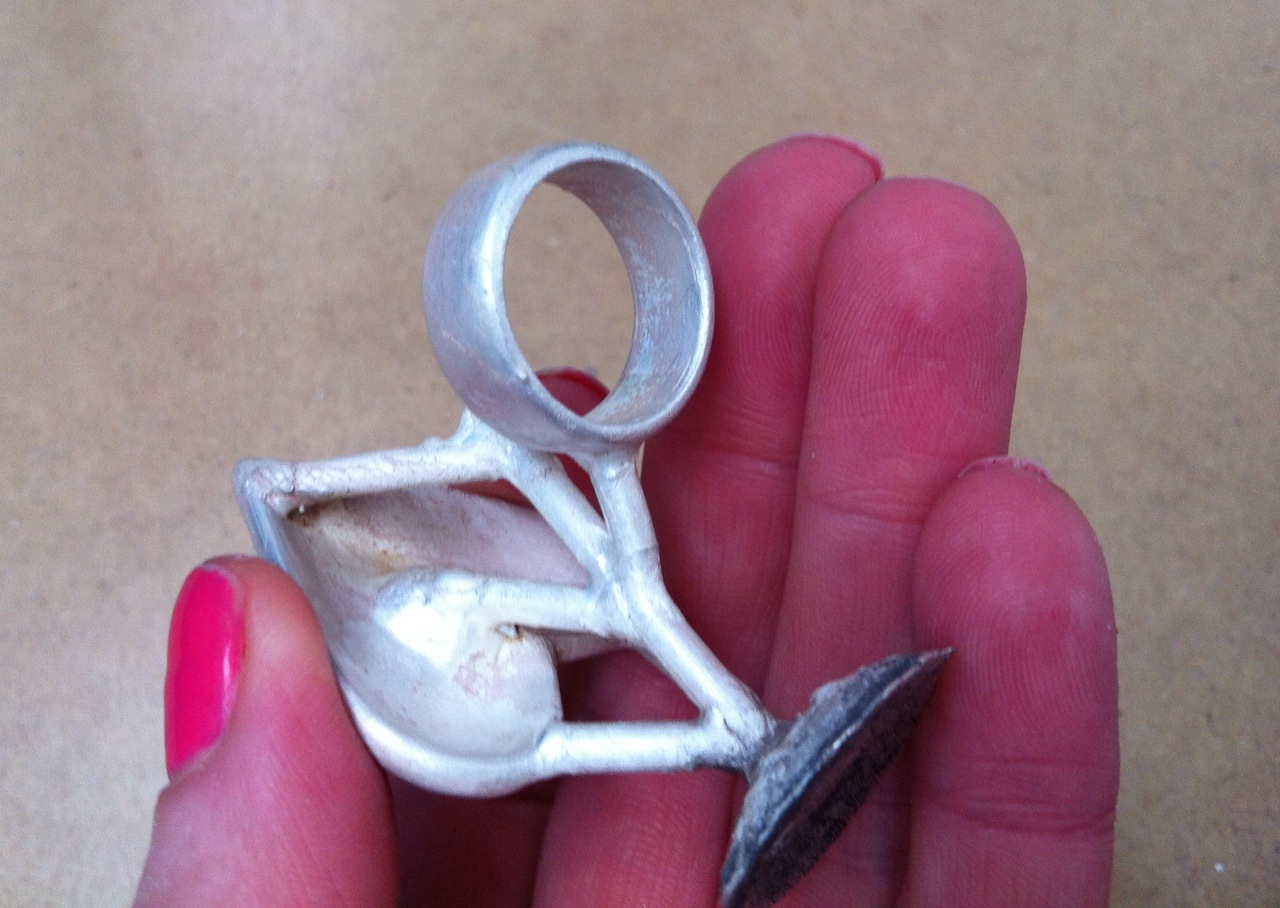

The casting after pickling

heartring13

The sprues are sawed off

Next it’s hours of grinding away the bumps and polishing the surface, starting with a metal file or grinder and then using emery paper, starting with the coarsest grit and repeating with ever-finer grits.

Grinding away the sprue edges.

Grinding away the sprue edges.

Next I soldered the ring band to the heart piece.

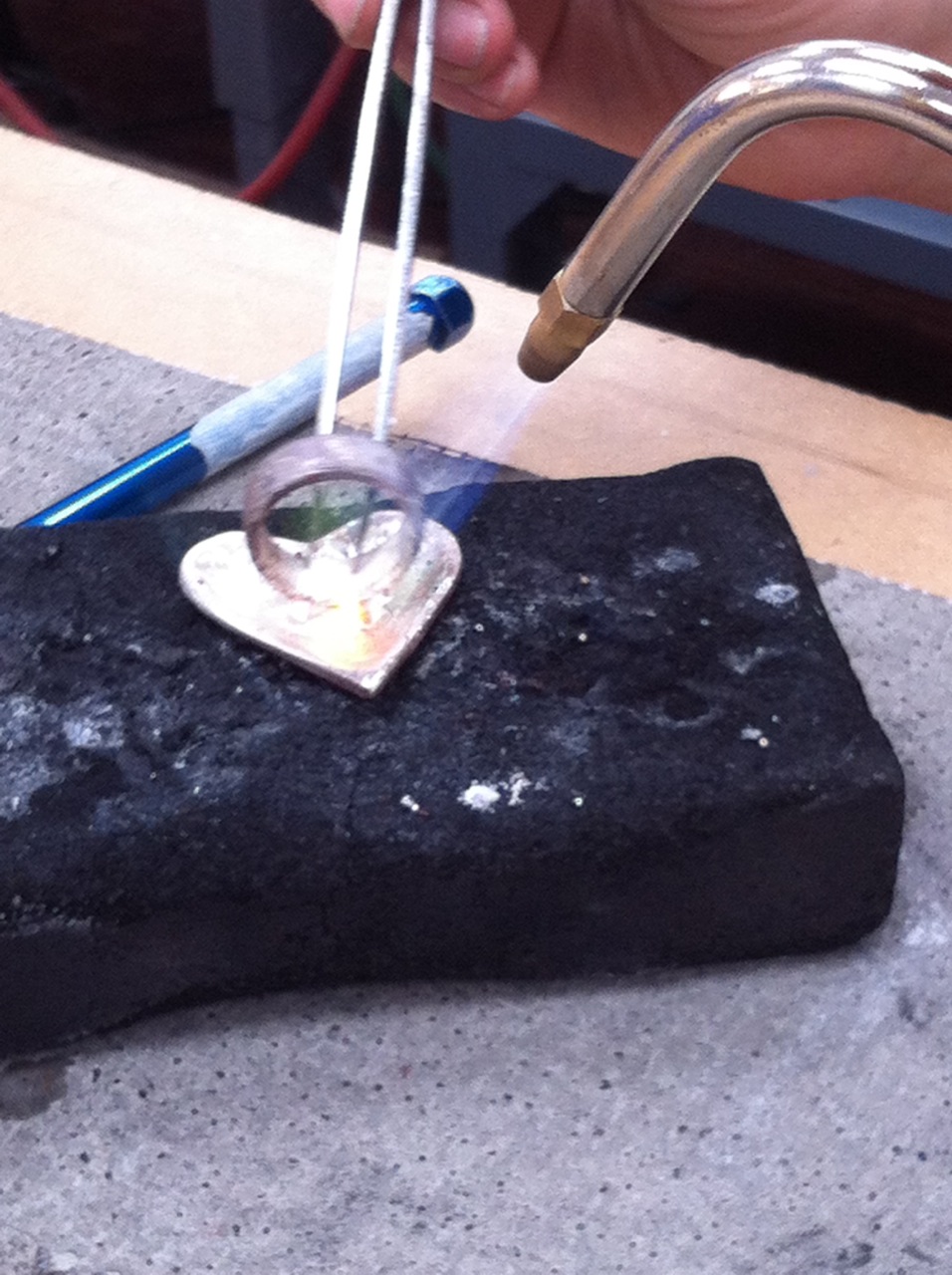

Soldering the ring band to the heart piece

Soldering the ring band to the heart piece

Soldering causes some kind of chemical reaction that turns the silver various colours.

Soldering causes some kind of chemical reaction that turns the silver various colours.

So then it’s more hours of sanding the surface to remove all the dirt and discolouration with emery paper, until finally it’s ready for a buffing with grey stone polishing compound and lastly rouge polishing compound.

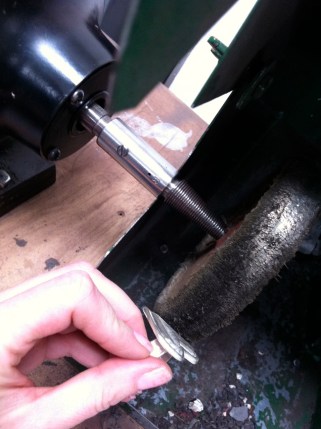

Polishing with a greystone buff.

Polishing with a greystone buff.

The finished ring.

The finished ring.

I just love my one-of-a-kind ring!
